 M4~ |
 1/4
"~ |
| |
 |

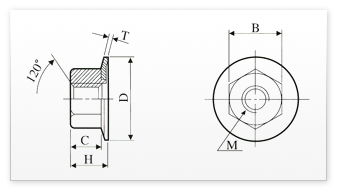

규격(M)
|
H |
C |
D |
H |
T |
| 1/4 |
0.438 |
0.222 |
0.551 |
0.293 |
0.039 |
| 5/16 |
0.500 |
0.267 |
0.708 |
0.354 |
0.055 |
| 3/8 |
0.562 |
0.332 |
0.866 |
0.427 |
0.062 |
| 1/2 |
0.750 |
0.440 |
0.984 |
0.566 |
0.070 |
|
| |
 |
규격(M)
|
H |
C |
D |
H |
T |
| M4 |
7 |
3.2 |
10 |
4.3 |
0.9 |
| M5 |
8 |
4 |
12 |
5.2 |
0.9 |
| M6 |
10 |
5.1 |
14 |
6.5 |
1.0 |
| M8 |
13 |
6.6 |
18 |
8.4 |
1.4 |
| M10 |
17 |
8.3 |
22 |
10.3 |
1.6 |
| M12 |
19 |
10 |
25 |
12.2 |
1.8 |
|
|
|
| |
| |
| |
| |
| |
|
|
|
|
